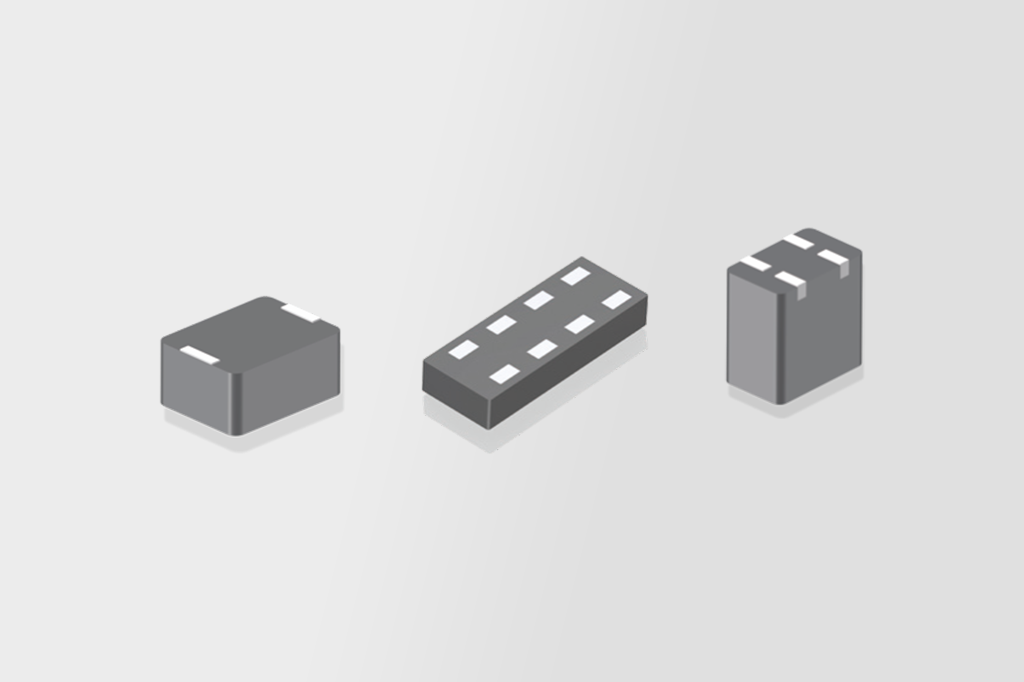

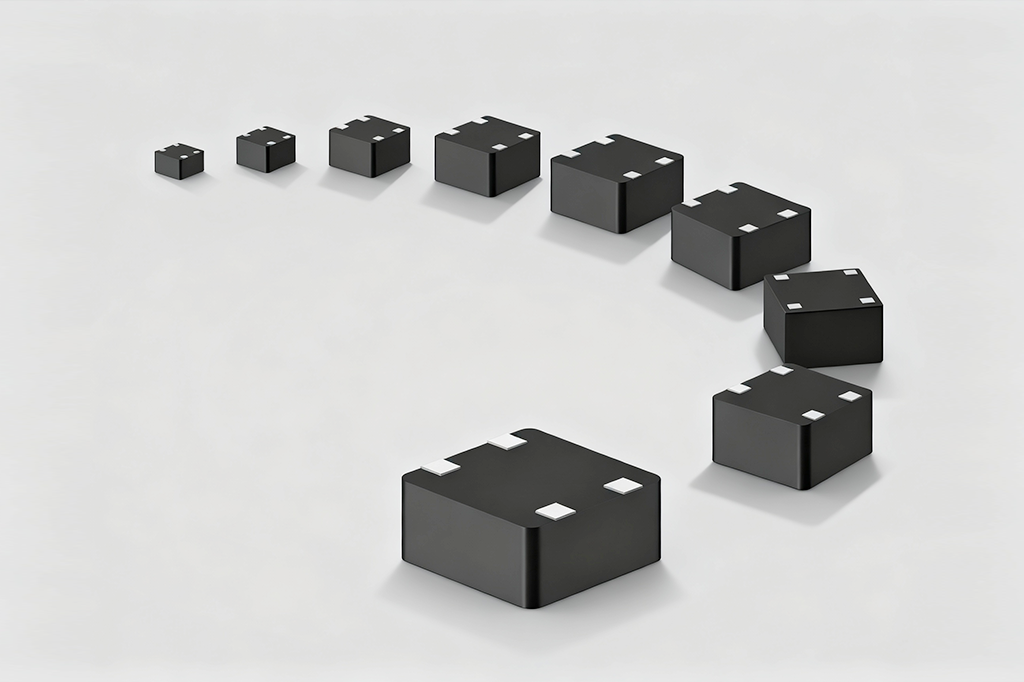

CFS系列
基于 Cu-Fe Co-sintering（CFS）共烧技术，实现低 DCR 与优异的热性能，尤其适合高效率与紧凑空间设计。可广泛应用于 AI 服务器、光模块、网络通信及消费电子。
特征
高电感量、低DCR
大电流，高功率密度
低损耗，高效率
散热良好，可靠性高
应用
DC-DC，12V/1V，6V/1V
AI服务器，如GPU，ASIC等供电
交换机
定制规格推荐
频率：200k～10MHz
电流：20~200A
感量：10nH~300nH
尺寸：L&W2~20mmH1~12mm结构；1-phase，2-phase，4-phase
标准品型号
样品申请
| Part Number | L@0A (nH) | Size(mm) | Irms (A) | DCR (mΩ)±10% | ||
| L | W | H | ||||
| CXA110530S-R120MT1 | 120 | 10.6 | 5.3 | 3.0 | 40.0 | 0.33 |
| CXA110540S-R120MT1 | 120 | 10.6 | 5.3 | 4.0 | 50.0 | 0.30 |
| CXA110530S-R150MT1 | 150 | 10.6 | 5.3 | 3.0 | 35.0 | 0.30 |
| CXA110540S-R150MT1 | 150 | 10.6 | 5.3 | 4.0 | 35.0 | 0.30 |
| CFF110730S-R180MT1 | 180 | 11.0 | 7.0 | 3.0 | 42.0 | 0.38 |
| CFF110736S-R180MT1 | 180 | 11.0 | 7.0 | 3.6 | 50.0 | 0.32 |
| CFF110730S-R220MT1 | 220 | 11.0 | 7.0 | 3.0 | 35.0 | 0.63 |
| CFF110736S-R220MT1 | 220 | 11.0 | 7.0 | 3.6 | 40.0 | 0.43 |
| CFF110730S-R270MT1 | 270 | 11.0 | 7.0 | 3.0 | 30.0 | 0.95 |
| CFA120628S-R150MT1 | 150 | 12.0 | 5.5 | 3.0 | 55.0 | 0.32 |
| CXA140530S-R120MT1 | 120 | 14.2 | 5.0 | 3.0 | 55.0 | 0.38 |
| CXA140530S-R150MT1 | 150 | 14.2 | 5.2 | 3.0 | 45.0 | 0.38 |
